Synthetic Packing

Style 560

Synthetic Packing /PTFE

Braided synthetic packing impregnated with PTFE before and after braiding.  Break-in lubricant is also added.  Good chemical resistance.

Temperature: 500F (260C)                     pH: 2-13

Pressure: 300 PSI (20 bar)                       Speed: 2200 FPM

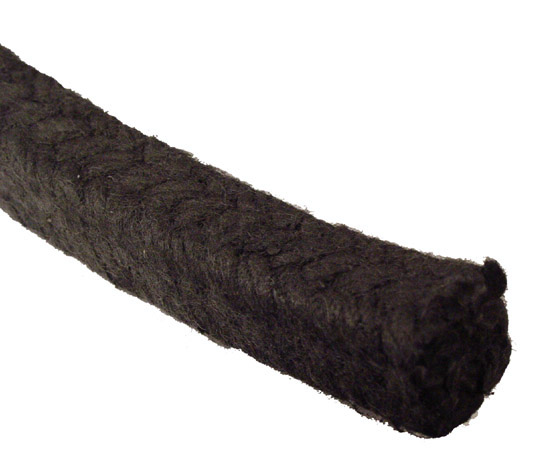

Style 570

Synthetic Packing /Graphite

Each strand of synthetic yarn is individually coated with graphite and impregnated with a high temperature lubricant. Finish packing braided is surface coated with graphite. A good general service and asbestos replacement packing.

Temperature: 450F (230C)                   pH: 4-10

Pressure: 300 PSI (20 bar)                    Speed: 1500 FPM
