Flexible Graphite Sheet

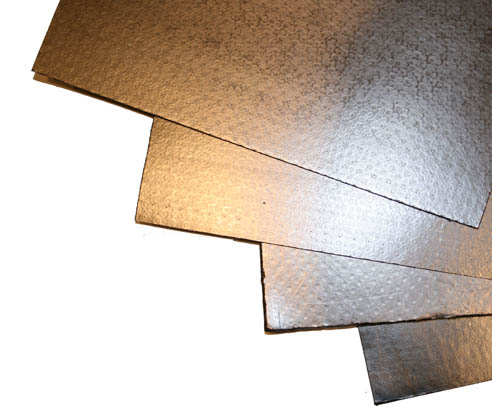

YC Industries' 200 series flexible graphite sheets are made from highly purified expanded flexible graphite without fibers, binders or other additives. Our flexible graphite sheet provides excellent sealing properties including thermal stability, self-lubrication and corrosion resistance.

Our line of flexible graphite sheet are available in pure homogeneous graphite, stainless steel foil and mylar reinforced.


Style No. Metal Insert Reinforce Measures Standard Sizes Standard Thk
200T Stainless Steel Tang Core Mechanically Bonded 2Mx2M 60"x60" 1Mx1M

1/64",1/32",1/16",1/8"

200F Stainless Steel Foil Adhesive Bonded 2Mx2M 60"x60" 1Mx1M
200H Homogenous Graphite N/A 2Mx2M 60"x60" 1Mx1M
200HR Homogenous Graphite N/A Up to 2M x 2000' .0079 - .0394"

Other specifications and sizes can be supplied according to the customer's demand


200T

Standard Industrial Grade flexible graphite sheet mechanically bonded on both sides of a .004" thick 316 stainless steel metal tang core. Virtually no creep or stress and excellent anti-stick properties

200F

Standard Industrial Grade flexible graphite sheet adhesive bonded to a .002” 316 stainless steel foil. Excellent 'anti-stick' agent on all flanges. Good resistance to chemicals and has a good shear strength coupled with good resistance to thermal shock

200H

Standard Industrial Grade flexible graphite sheet contains no binders or resins. Use as facing material for flat gaskets and filler material for spiral wound gaskets.

200HR

Standard Industrial Grade flexible graphite sheet roll contains no binders or resins.  Sizes can be supplied up to width of 78.7” and length of 2000’

200M

Standard Industrial Grade flexible graphite sheet with Mylar film insert. Sizes supplied up to 2M x 2M


Style/Item 200T 200F 200H 200HR
Carbon Content 99% minimum 99% minimum 99% minimum 99% minimum
Compressibility 27 - 40% 40 - 50% 40 - 50% 40 - 50%
Recovery 10 - 15% 10 - 15% 10 - 15% 10 - 15%
*Density 70 lb/ft3 (1.1 g/cc) 70 lb/ft3 (1.1 g/cc) 70 lb/ft3 (1.1 g/cc) 0.8 - 1.3 g/cm3
sealability 0.5 ml/hr. 0.5 ml/hr. 0.5 ml/hr. 0.5 ml/hr.
*Sulfur Content 1000 ppm maximum 1000 ppm maximum 1000 ppm maximum 1000 ppm maximum
Leachable Chloride 50 ppm maximum 50 ppm maximum 50 ppm maximum 50 ppm maximum
Ash Content 1% maximum 1% maximum 1% maximum 1% maximum
* These properties can be supplied according to customers' demands
