PTFE Graphite Packing

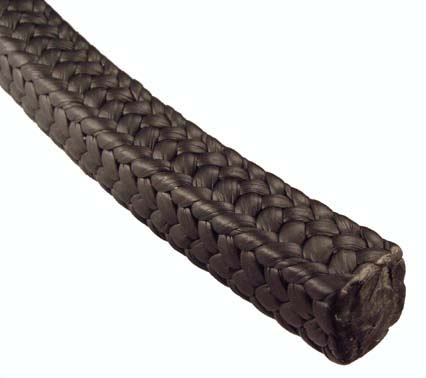

Style 600

PTFE Graphite Packing

Style 600 PTFE graphite packing is braided from PTFE yarn containing graphite particles. Excellent general services for sealing on alkalis, solvents, water, steam, acid except strong oxidizing acids.

Temperature: 550F (287C) steam                Speed: 4000 FPM

pH: 0-14 except strong oxidizers





Style 604

PTFE Graphite Packing

- Made from highest quality graphite

- Thermally conductive, self lubricating

- Used on all rotating shafts

Temperature: 550F (287C) steam                Speed: 4400 FPM

pH: 0-14 except strong oxidizers

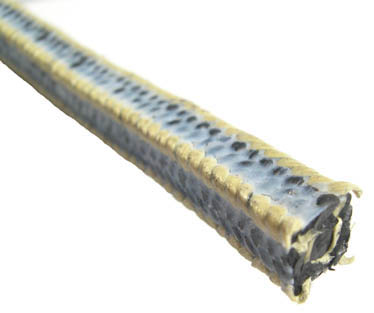

Style 650

PTFE Graphite Packing / Aramid Fiber

PTFE graphite packing reinforced edges with aramid prevents gap extrusions within high pressure and temperature.  Good sliding velocity and thermal conductivity. Great service packing for severe pump applications.

Temperature: 550F (287C) steam

pH: 2-12
