Flexible Graphite Packing

Flexible graphite packing is braided from pure expanded graphite. Its resilient, compressible, thermally conductive and self-lubricating properties make it ideal for use in pumps and valves in petrochemical refining, power generation and other industries

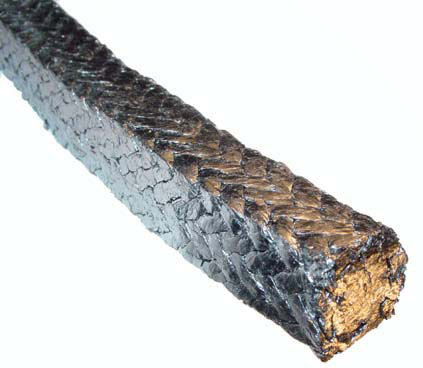

Style 800

Flexible Graphite Packing (General Service)

- Pure expanded graphite

- Thermally conductive, self-lubricating

- Used on pumps and valves

Temperature: 1250F (650C) steam                Speed: 4000 FPM

pH: 0-14 except strong oxidizers       Pressure: 3000 PSI (200 bar)





Style 821

Flexible Graphite Packing (Inconel Wires)

- Inconel wires reinforcement

- Used for steam/high temperature services

- Excellent valve stem packing

Temperature: 1200F (650C) steam

pH: 0-12 except strong oxidizers       Pressure: 4000 PSI (275 bar)

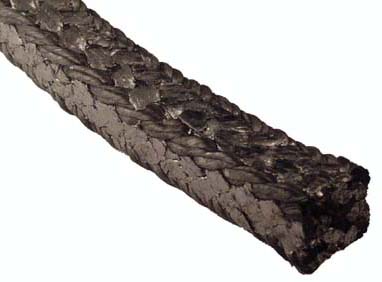

Style 880

Flexible Graphite Packing (Carbon Graphite Fiber)

- Easy to use/remove

- Anti-extrusion packing

- Used on both pumps and valves

Temperature: 1250F (650C) steam                Speed: 4000 FPM

pH: 0-14 except strong oxidizers       Pressure: 3600 PSI (250 bar)
