Graphite Packing

Graphite particles in graphite packing serve as heat conductor which dissipate heat generated in the pumps and valves


Style 430

Graphite Packing/ Graphite

Style 430 is a graphite packing braided with the highest quality continuous filament graphite yarn, interlock braided. Used for severe services in pumps and valves.  Treated throughout with graphite particles

Temperature: 1000F (540C)                   pH: 0-14

Pressure: 600 PSI (41 bar)                       Speed: 2000 FPM

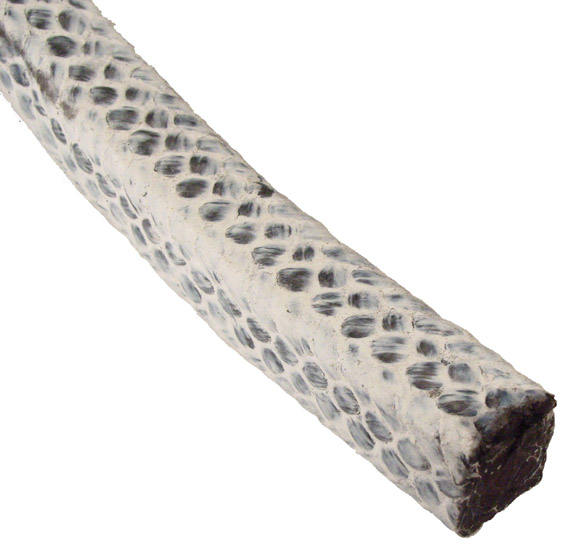

Style 435

Graphite Packing/ PTFE

Braided with high purity graphite yarn.  Interlock braided and impregnated with PTFE. Combination of graphite and PTFE make style 435 an excellent non-contaminating and chemical resistance packing.

Temperature: 600F (315C)                     pH: 0-14

Pressure: 1000 PSI (70 bar)                      Speed: 2000 FPM
